MP50

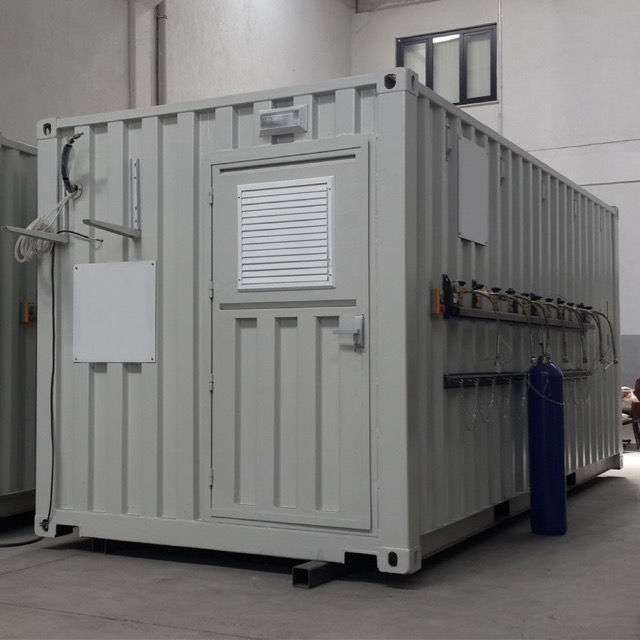

You will able to produce your own oxygen gas according to your requirements with the Mentis MP50 series. When electricity is supplied, these dependable compact plants can provide 22Nm3 per hour oxygen gas at 95% oxygen concentration up to 6 bar oxygen gas outlet pressure and also 18Nm3/hour cylinder filling station at 150 bar filling pressure.
MOBILE OXYGEN & NITROGEN PLANTS | MP50
MP50
Features
-High-Quality oxygen gas (vol. 95% oxygen)
-Plug & Play design
-Low footprint
-Microprocessor controlled (Siemens PLC)
-Touchscreen control panel
-Low operating cost (0.7kW energy consumption per 1m³oxygen gas)
-Fully automatic operation
-Easy installation & maintenance
-24/7 Pressure, purity, and consumption chart records
-Zirconia type oxygen sensor for exact oxygen purity
-Integrated own desiccant air dryer system
-Integrated own filtration system
-Volumetric oxygen gas flow control display
-24/7 Online support
-Automatic maintenance and service alarms
-Remotely control via ethernet connection**
-High purity oxygen up to 99% **
** Optional
| CODE: | MTS-SKU-100032 |
| PRESSURE: | Up to 150 Bar (g) |
| FLOW: | 22 Nm³/h @ 150 bar |
| HARDWARE: | PSA Unit + Air Compressor + Compressed Air Tank + Oxygen Tank + Cylinder Filling Unit + Container |
| REMOTE ACCESS: | Optional |
| DIMENSIONS: | ISO 20 Feet Standart Container |
| WEIGHT: | 4.500 Kg |
